Single Scroll, V-Band with internal wastegate

Performance rating: 225 - 550HP

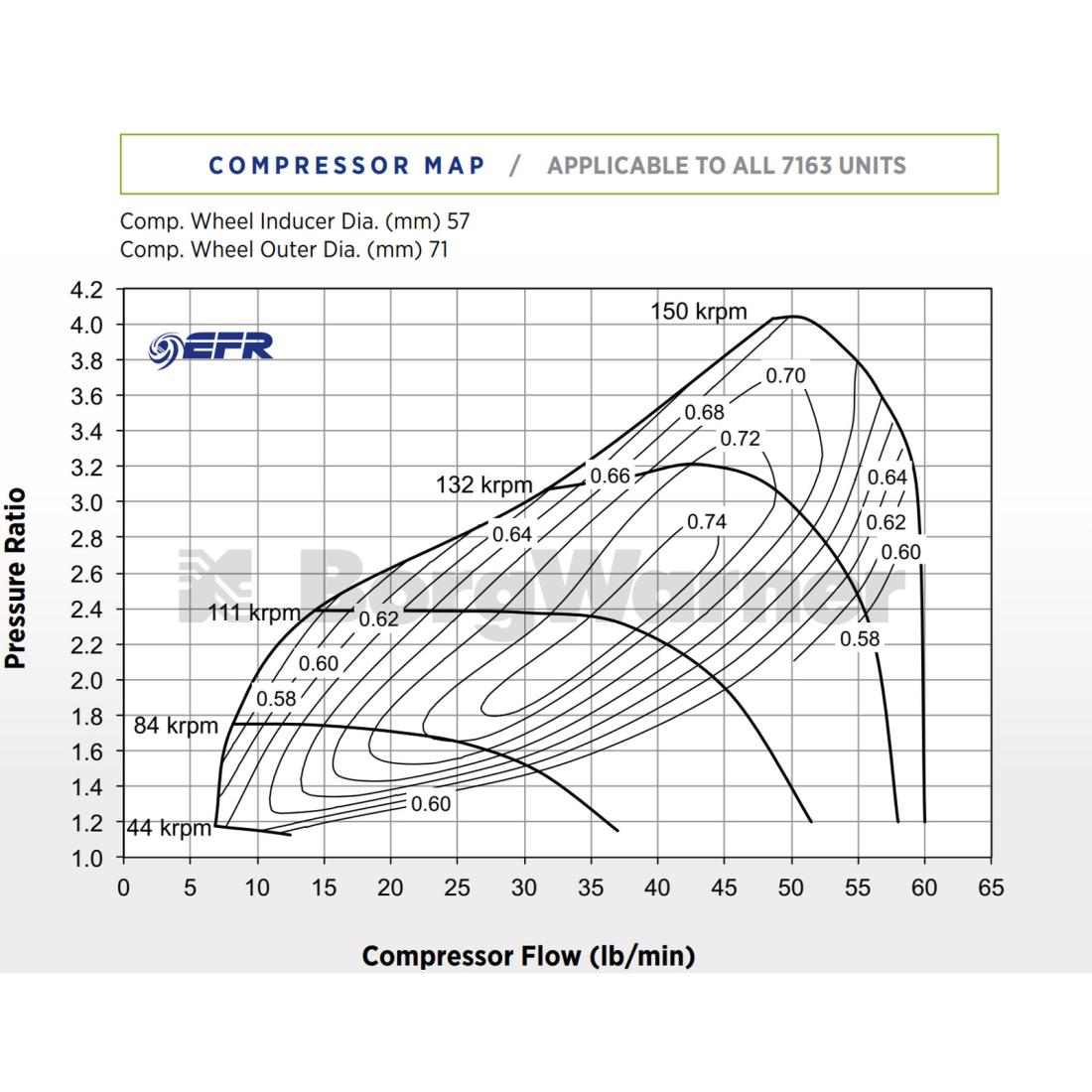

compressor wheel inlet: 57mm, outlet 71mm

turbine wheel outlet: 63mm

turbine housing : 0.85 A/R with V-Band flange, internal wastegate, V-band downpipe connection

BorgWarner EFR turbocharger has been developed with only one goal in mind: to dominate road, racetrack and quartermile. BorgWarner EFR turbocharger are equipped with state of the art high-tech features for unbeaten performance.

EFR Turbos are available in 7 different sizes and 4 different turbine housings, covering performance ratings from 250 to 1000HP.

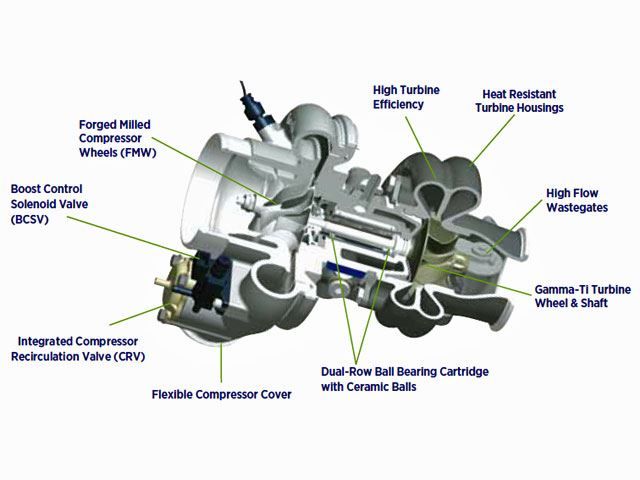

The combination of a high-efficiency compressor wheel, Gamma-Titanaluminid turbine wheel, with ceramic ball bearing technology dramatically raises the bar for motorsports turbochargers and is state of the art in terms of turbocharger technology:

Compressor:

- forged and milled compressor wheel, extremely lightweight and resistant to highest boost levels, Extended tip technology

- integrated blow off valve

- integrated boost solenoid

- 360° rotation via V-band technology

- prepared socket for speed sensor (optionally available) to monitor compressor wheel speed. Thereby compressor efficiency can be calculated.

Core assembly:

- dual ceramic ball bearing

- integrated oil restrictor

- water cooled

Turbine housing:

- stainless steel turbine housing

- Gamma-Titanaluminid turbine wheel and shaft, 50% lighter than comparable Inconel turbine wheel and extremely heat resistant up to 1050°C (for comparison: Garrett only up to 950°C)

- high-flow wastegate port

- internal wastegate (even available for Twinscroll turbine housing!)

Attributes

a/r Value: 0,80ar, 0,85ar

Model: internal Wastegate, Ball bearing

Flange type: V-Band

Turbocharger: EFR 7163

Product weight: 10.00 Kg
